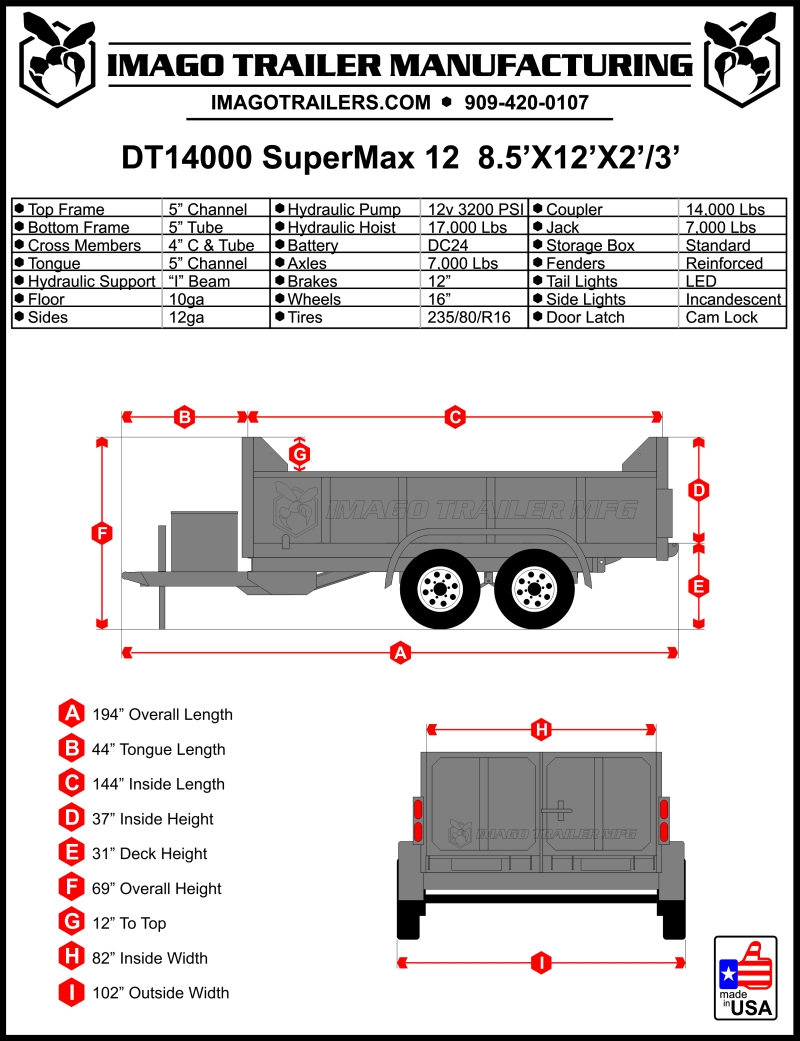

Specifications
|
|
| GVWR |
14,000 lbs |
| Payload Capacity |
9,900 lbs |
| Dumping Capacity |
15,400 lbs |
| Outside Length |
16' |
| Outside Width |
102" |
| Outside Height |
68" |
| Inside Length |
144" |
| Inside Width |
82" |
| Inside Height |
37" |
| Wheel Size |
16" |
| Tire Size |
235/80/R16 |
| Tire Rating |
E |
| Axles |
(2) @ 7,000 lb each [USA Made] |
| Brakes |
(4) Wheel 12" Electric Drum |
| Hydraulic Power Unit |
Monarch Buscher [USA Made] |
| Hydraulic Hoist |
Rugby Scissor Hoist [USA Made] |
| Hydraulic Operating Pressure |
3,200 psi |
Frame |
R/T Frame |
Fenders |
3 Point Reinforced [USA Made] |
| Ramps |
(2) Rear Sliding 6' |
| Ramp Mounts |
Solid Bar with Safety Latch |
| Tail Lights |
(4) LED Rubber Mounted Oval |
| Tail Light Enclosures |
IPC [USA] |
| Storage Box |
IPC [USA Made] |
| Tongue Jack |
7,000 lb Drop Leg |
